Personalized Car Coding: How to Customize Your Car with Diagnostic Tool

In automotive customization, the line between form and function is increasingly blurred. Car enthusiasts are no longer satisfied with cosmetic changes; they seek to unlock the full potential of their vehicles through personalized car coding—a process that involves tailoring the car's electronic systems to their specific desires and needs. With advanced diagnostic tools, this once-exclusive domain of car manufacturers and high-end tuners has become accessible to everyday drivers. Welcome to the era where technology meets personalization, and every keystroke can transform your ride.

This article will guide you through the fascinating world of car coding, exploring how diagnostic tools can be used to customize your car, from unlocking hidden features to optimizing performance parameters. Let's dive into the realm of possibilities and discover how to make your car your own.

Discover Car ECU Coding

Automotive ECU coding, also known as engine control unit coding, is the process of modifying the ECU's internal software to adjust the car's behavior in various situations. This may include unlocking hidden features, disabling unneeded functions, or optimizing performance and efficiency. Here is some information about ECU coding in cars:

1. customization and optimization:

ECU coding allows for customization of your vehicle's performance characteristics. This can include adjusting parameters such as fuel injection rates, air-fuel ratios, and ignition timing curves to increase horsepower and torque, or to improve fuel efficiency.

2. Unlock hidden features:

Many modern vehicles come with features that are disabled by the manufacturer. ECU coding can unlock these features, which may include performance data displays, convenience features such as folding mirrors when locking the car, or dynamic light settings. o ECU coding can be used to unlock features that are not available on the vehicle.

3. Disable annoying features:

ECU codes can also be used to disable certain features that you find annoying or unnecessary, such as seatbelt warnings, start-stop functions, or fake exhaust sounds.

4. Modifying components:

ECU codes can be used to integrate new components via the OBD2 scanner after a hardware change.

Difference between ECU coding and ECU programming:

ECU coding modifies settings within the vehicle's electronic control unit, whereas ECU programming involves remapping or updating the engine control unit's software to enhance performance. Coding is usually simpler than programming and requires less expensive tools than programming, which can be more complex and require advanced interfaces. o ECU coding involves modifying the settings within the vehicle's electronic control unit.

Steps to Perform ECU Coding Are as Follows

1. Prepare Tools and Equipment

• Automotive Diagnostic Tools: Common ECU coding tools include:
• OBD-II Diagnostic Interface: For example, an OBD-II adapter that connects to the vehicle's OBD-II port.
• Professional ECU Programming Tools: Such as VAG-COM (for Volkswagen, Audi, etc.), BMW INPA (for BMW), Star Diagnosis (for Mercedes-Benz), etc.
• Computer and Related Software: Some ECU programming requires a connection to a computer and the use of specific manufacturer software.
• Vehicle Battery Charge: Ensure that the vehicle battery has sufficient power to avoid programming failure due to low voltage during the coding process.
• Understand the Vehicle Model and ECU Type: Different automotive brands and models may have different ECU coding methods and tools. Make sure you understand the ECU architecture and type of the vehicle you're working on.

2. Connect and Diagnose

• Connect the OBD-II Interface: Connect the OBD-II diagnostic tool or adapter to the vehicle's OBD-II port. This port is typically located under the driver's seat, near the dashboard.
• Turn On the Vehicle Power: Some vehicle models require the ignition to be switched on or the engine to be started. Refer to the vehicle manual for specific instructions.
• Start the Diagnostic Software: Open the diagnostic tool or relevant software and select the correct vehicle model and ECU type.

3. Select ECU Coding Function

• Select ECU Module: In the software interface, select the ECU module you want to code. Common ECU modules include:
• Engine Control Unit (ECU)
• Transmission Control Unit (TCU)
• Body Control Module (BCM)
• ABS Control Module
• Airbag Control Module (SRS)
• In-Car Entertainment System
• Choose Coding or Programming Options: Different ECUs may have different coding options. Common coding functions include:
• Enabling or disabling certain features (e.g., automatic headlights, automatic wipers, tire pressure monitoring system, etc.).
• Configuring new hardware or accessories (e.g., replacing sensors, upgrading the ECU, etc.).
• Setting certain vehicle characteristics (e.g., throttle response, brake control, start-up mode, etc.).

4. Perform Coding

• Execute Coding or Programming: Once the correct options and parameters are selected, you can begin the coding process. At this point, the software will write the chosen configuration to the ECU.
• Confirm and Save Settings: After programming, the diagnostic tool will prompt the user to confirm whether the changes were successful and ensure all settings have been saved to the ECU. Typically, there will be a confirmation prompt to ensure no errors occurred.
• Restart the ECU and Vehicle: Some ECUs may need to be rebooted after programming, or the vehicle itself may need to be turned off and on again to ensure the new settings take effect.

5. Verification and Testing

• Check Functionality: After coding, it is recommended to check whether the relevant vehicle functions are working as expected. For example, verify that enabled or disabled features are functioning correctly, or that new hardware is properly recognized.
• Read Fault Codes: Use the diagnostic tool to read the vehicle's fault codes again to ensure no new issues were introduced during the coding process. If there are any new fault codes, further troubleshooting may be required.
• Perform Road Test: If the coding involves changes to driving performance (e.g., driving mode, power output, etc.), a simple road test can be performed to check the vehicle's response and performance changes.

Why Choose XTOOL for ECU Coding

Here are several reasons why XTOOL's ECU Coding Tool is a popular choice in automotive repair and programming work, making it a preferred option for many users:

1. Wide Compatibility

• Supports Multiple Brands and Models: XTOOL’s ECU coding tool supports a wide range of automotive brands and models, including major brands from Europe, Asia, and America. For example, Volkswagen, Audi, BMW, Mercedes-Benz, Ford, Toyota, Honda, Nissan, Hyundai, and many other brands can be coded through XTOOL. This means users can handle vehicles of different brands and models using the same tool.
• Support for Multiple ECU Modules: The XTOOL tool not only supports the coding of the Engine Control Unit (ECU), but also supports the coding of the Transmission Control Unit (TCU), Body Control Module (BCM), ABS, SRS Airbag Control Unit, Climate Control Unit, In-Car Entertainment System, and many other ECU modules.

2. Powerful Features and Professionalism

• ECU Programming and Coding Functions: The XTOOL ECU tool not only supports standard fault diagnosis but also allows for ECU programming, resetting, and customization. For example, it can enable or disable specific features (such as automatic headlights, automatic wipers, dash cams, etc.), adjust driving modes, throttle response, brake control, start-stop settings, and more.
• Real-Time Data Stream and Diagnostics: In addition to ECU coding, XTOOL provides robust diagnostic capabilities, enabling real-time reading and display of sensor data streams from various vehicle modules, which helps users gain a comprehensive understanding of the vehicle’s status.

3. User-Friendly and Easy to Operate

• Simplified Interface Design: The XTOOL device and software interface are intuitively designed and easy to understand. Even users who are not familiar with ECU coding can successfully complete coding tasks with its straightforward operation steps. Detailed prompts and guidance are provided to reduce operational errors.
• Quick Start and Operation: XTOOL tools offer fast startup and execution speeds, meaning users don’t have to wait long to complete diagnostic and coding tasks. This makes it ideal for automotive repair shops and technicians who need efficient daily operations.

4. High Cost-Performance Ratio

• Reasonable Pricing: Compared to some other brands, XTOOL’s ECU coding tool offers similar functions and performance at a more affordable price. For automotive repair shops or car owners, XTOOL offers a high-cost-performance option, helping them save on equipment investment costs.
• Long-Term Updates and Support: XTOOL generally provides continuous software updates to ensure the tool can support the latest vehicle models and technologies. This means that after purchasing XTOOL tools, users can benefit from long-term technical support and upgrade services.

5. Stability and Reliability

• Stable Hardware Design: XTOOL’s hardware design has undergone rigorous testing to ensure high stability and durability. Whether used for extended periods or in various environments, XTOOL tools maintain reliable performance.
• Low Failure Rate: XTOOL products have a low failure rate, which effectively reduces the hassle of repairs and returns, ensuring smooth workflows for users.

6. Excellent Customer Support

• Global Technical Support: XTOOL offers professional technical support and after-sales service to users worldwide. Whether users encounter issues during use or need assistance for specific vehicle models, they can obtain solutions through official support channels.

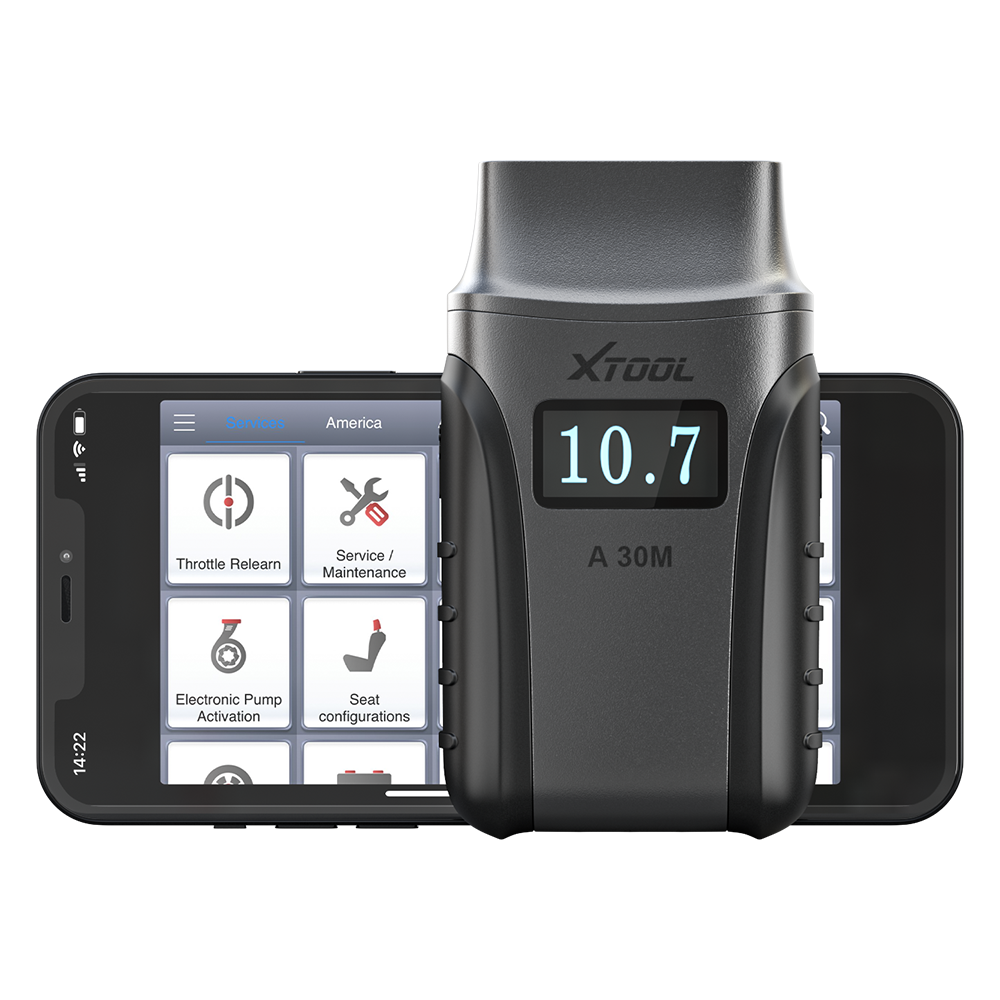

XTOOL A30M

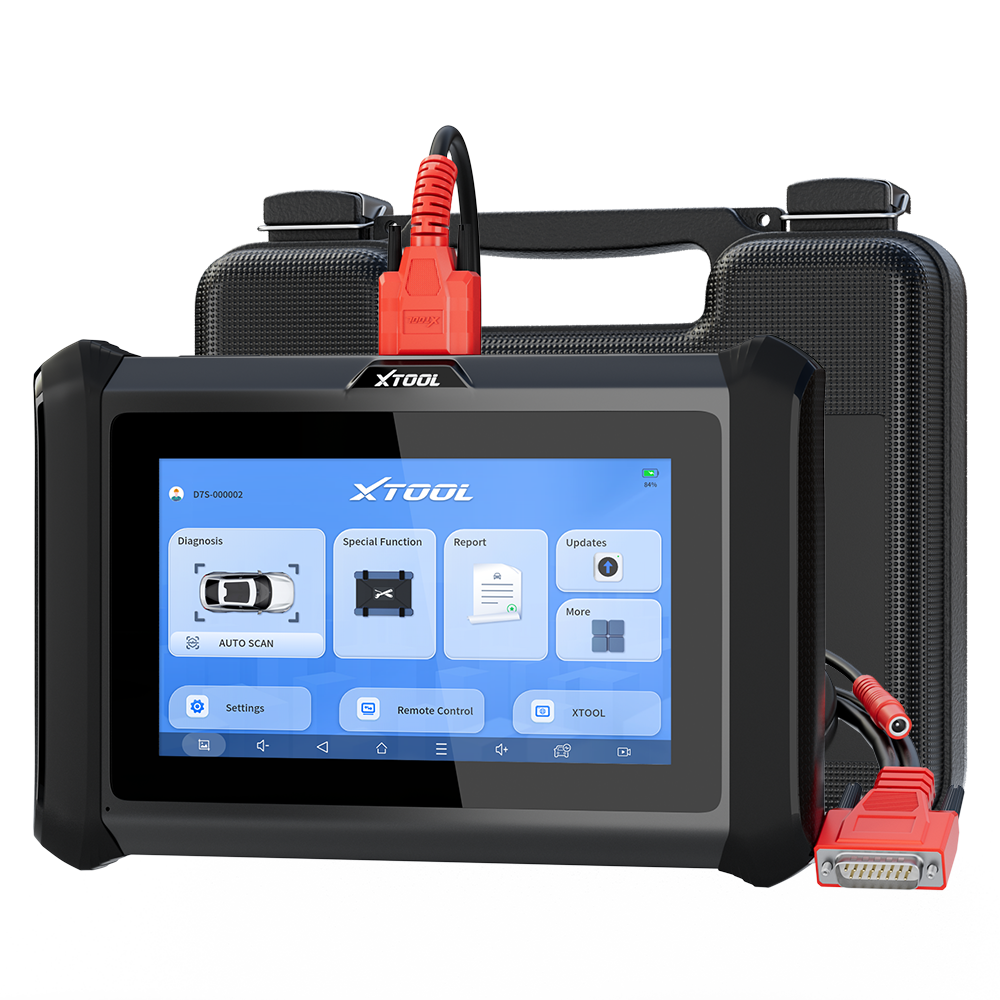

XTOOL D7S

XTOOL IP919 Pro

XTOOL's ECU coding tools stand out as an excellent choice for automotive professionals and car enthusiasts alike, offering a perfect balance of advanced functionality, wide compatibility, and user-friendly design. With its support for a broad range of vehicle brands and ECU modules, powerful diagnostic and coding capabilities, and cost-effective pricing, XTOOL delivers exceptional value to repair shops and individual users. Its stable and reliable hardware, coupled with long-term software updates and global technical support, ensures a smooth and efficient working experience.
