What is the Most Common Reason for Check Engine Light?

The check engine light, which is a telltale indicator on your car's dashboard, can be a source of anxiety for any driver. When it illuminates unexpectedly, it's a clear signal that something within the vehicle's complex network of systems has gone awry. But what is the most common reason for the check engine light to come on among the myriad of potential issues that could trigger this warning?

This article will delve into the intricacies of modern automotive diagnostics to uncover the prevalent culprit behind this ubiquitous warning light. Understanding the root cause is crucial, as it not only affects the performance and efficiency of your vehicle but also has implications for your safety and the environment.

Common Reasons Why the Check Engine Light Comes On

A Check Engine Light coming on usually means that the vehicle's emissions control system or engine control system has detected a problem. Here are some common reasons why the Check Engine Light comes on:

Faulty oxygen sensor:

The oxygen sensor is responsible for monitoring the amount of oxygen in the engine exhaust to help adjust the air-fuel ratio to optimize combustion efficiency and reduce emissions. A damaged or malfunctioning sensor is a common cause for the check engine light to come on.

Catalytic converter problems:

Catalytic converters reduce harmful substances in emissions. If the catalytic converter becomes less efficient or is damaged, it can cause the check light to come on.

Fuel system problems:

This includes clogged injectors, a faulty fuel pump, or a problem with the fuel pressure regulator, all of which can cause the engine to run improperly.

Ignition system problems:

Includes a faulty spark plug, ignition coil problem, or ignition controller problem, all of which can cause the engine to misfire or run erratically.

EVAP system leaks:

The vapor emission control system (EVAP) is used to control fuel vapor emissions. A leak in the system can cause the check engine light to come on.

Air flow meter or mass meter problems:

These sensors measure the amount of air entering the engine, and if they provide inaccurate data, it can affect the engine control unit's calculations and air-fuel ratio.

Cooling system problems:

This includes a faulty coolant temperature sensor or a leak in the cooling system, which can cause the engine to overheat.

Malfunctioning Throttle Position Sensor:

The throttle position sensor monitors the opening of the throttle, and if the sensor fails, it can affect the engine's idling and acceleration.

PCV system problems:

The crankcase forced ventilation (PCV) system helps reduce pressure and emissions in the crankcase. Problems with the PCV system can cause the check light to come on.

Emission control system problems:

This includes a faulty EGR valve, secondary air injection system problems, etc. These can cause the emission control system to not work properly.

Battery or charging system problems:

Insufficient battery voltage or a charging system failure may affect the vehicle's electronic systems, including the engine control unit.

Software problems or sensor calibration issues:

Sometimes a software problem in the engine control unit or an improperly calibrated sensor can also cause the check engine light to come on.

When the check engine light comes on, it's best to use an OBD-II scan tool to read the trouble codes to determine the exact problem and take the appropriate repair action.

Reset Engine Light with XTOOL Diagnostic Tool

1. Connect the diagnostic device:

First, connect the XTOOL diagnostic to the vehicle's OBD-II port. This port is usually located in the vehicle's cockpit, near the driver's seat.

2. Read fault codes:

Turn on the XTOOL Diagnostic and select the “Read Trouble Codes” function, the diagnostic will read the trouble codes stored in the electronic control ECU. These codes will provide detailed information about the engine problem. 3.

3. Record the fault codes:

Before clearing the fault codes, it is recommended to record the contents of these faults for maintenance reference.

4. Repair faults:

Based on the fault codes read, targeted repairs are carried out. This may include replacing sensors, repairing wiring connections, etc.

5. Clear fault codes:

After the repair is completed, use the “Clear Fault Code” function of the XTOOL diagnostic instrument to clear the current and historical fault code memory stored in the ECU. Please note that the fault codes can only be cleared successfully after all faults have been removed.

6. Verify the maintenance of the repair:

After clearing the codes, re-read the codes to verify that there are no remaining problems. If the fault code no longer appears, the problem has been resolved.

7. Handling of special cases:

For some temporary problems, such as the engine malfunction light coming on due to oil quality problems, you can try to restart the vehicle after stopping and turning off the engine, and sometimes the malfunction light will go off by itself.

Eliminating the malfunction light does not mean that the problem has been completely solved, if the root cause of the malfunction has not been dealt with, the malfunction light is likely to come on again, at this situation, please send the vehicle to a professional repair store as soon as possible for inspection.

Recommended XTOOL Products with Engine System Diagnostic Function

We will explore the recommended XTOOL products that excel in engine system diagnostics, highlighting their key features and capabilities that set them apart as indispensable tools for any automotive workshop or home garage.

XTOOL A30M

The A3M is can access and scan all available vehicle modules such as ABS, SRS, engine, automatic transmission, BCM, HVAC, suspension, chassis, radio, parking, etc. to pull and clear codes, view real-time data, freeze frames, and perform proactive testing. The A30 is equipped with the ability to view up to 8 real-time data simultaneously in a graphical format for easy identification of problems and trends, including cylinder misfire data, transmission fluid and oil temperature, fuel trim, ATF temperature, cylinder balance ratio, engine RPM, O2 sensor data, mass air flow sensor data, fuel pressure and fuel temperature comparis on.

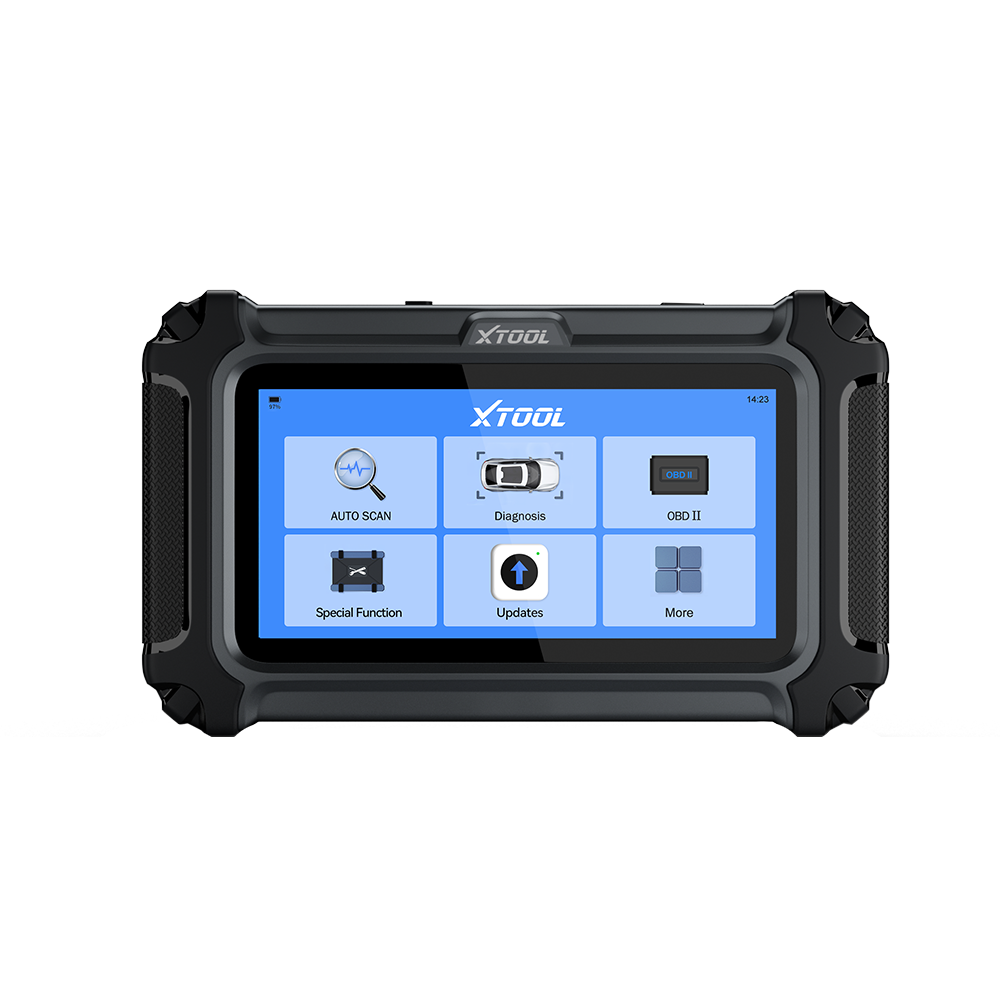

XTOOL D5S

For DIY enthusiasts who solve common automotive problems such as engine, transmission, ABS and SRS, the XTOOL D5S car scanner offers specialized diagnostic functions. Equipped with a dual-core 1.2GHz CPU, 128MB RAM, and 32GB of expandable ROM, the D5S runs on a smooth Linux operating system to ensure fast and efficient diagnostic performance.

XTOOL IP919Pro

Equipped with a Qualcomm octa-core processor, the processing speed has been increased by 5 to 10 times compared to its predecessor, providing more responsive and smoother operation experience. Supports full-system diagnostics for Asian, European, American, and Australian 1996 and later models, including maintenance reset, TPMS, EPB, DPF/GPF, electronic throttle reset, and 42 other special functions to meet common and DIY function needs.

Whether you're a professional mechanic or a car enthusiast, the XTOOL IP919Pro, D5S, and A30 series are not just tools but trusted companions in maintaining the health of your vehicle.
