How to Program a Key Fob with Professional Tools: A Step-by-Step Guide for DIY Success

Programming a key fob might seem like a task reserved for dealerships or professional locksmiths, but with the right tools and guidance, it’s a project you can tackle at home. Whether you’re replacing a lost key fob, adding a spare, or upgrading to a smart key, this step-by-step guide will walk you through the process using professional-grade tools. Save time and money while learning a valuable skill—let’s dive in!

Why Program a Key Fob Yourself?

Modern key fobs do more than unlock doors—they control alarms, start engines remotely, and even adjust vehicle settings. While dealerships charge $150–$500 for programming, DIY enthusiasts can achieve the same results for a fraction of the cost. Professional tools like Autel MaxiIM IM608, XTOOL X100 PADSs provide dealership-level capabilities, making them ideal for home use.

Tools You’ll Need

Before starting, gather these essentials:

Key Fob Programming Tool: For accessing your car’s computer.

Blank Key Fob: Ensure compatibility with your vehicle’s make/model/year.

Vehicle Manual: Critical for model-specific instructions.

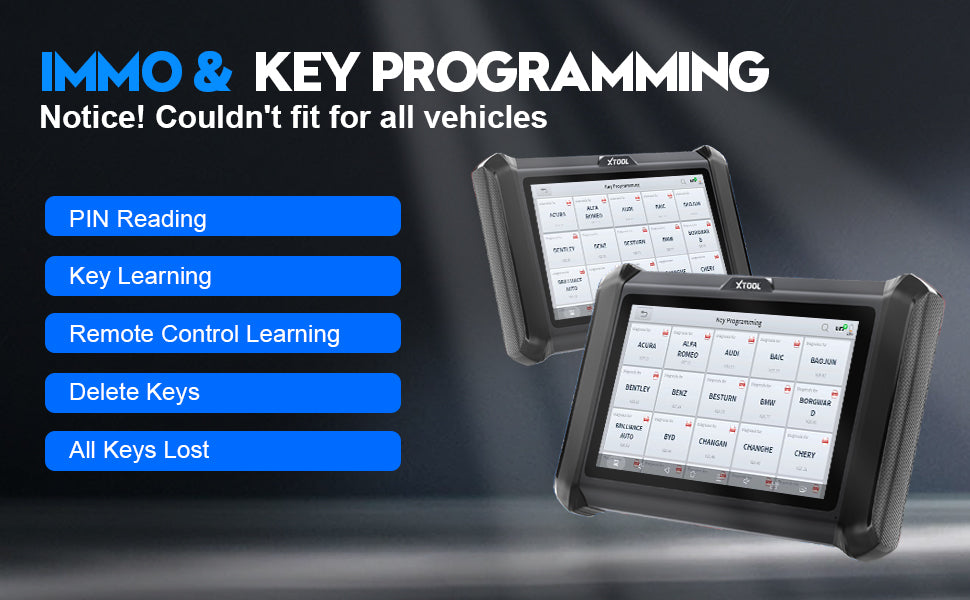

Understanding the XTOOL X100 PADS

The XTOOL X100 PADS is an advanced automotive diagnostic tablet designed for key programming and various other functions. Its user-friendly interface and robust capabilities make it a favorite among both professionals and DIY enthusiasts.

Key Features:

• Key Programming: Add new keys, program remote functions, and handle all keys lost scenarios.
• Diagnostic Functions: Perform comprehensive vehicle diagnostics, including reading and clearing fault codes.
• Special Functions: Access features like mileage adjustment, oil service reset, EPB reset, and more.
• EEPROM Programming: Read and write EEPROM data for advanced key programming tasks.

Step-by-Step Guide to Programming a Key Fob

Step 1: Prepare Your Equipment

Before you begin, ensure you have:

• The XTOOL X100 PADS device.
• A compatible key fob for your vehicle.
• Access to your vehicle's OBD-II port.
• Stable internet connection for software updates and programming.

Step 2: Activate the XTOOL X100 PADS

1. Power on the X100 PADS.
2. Connect to Wi-Fi.
3. Enter the required information, including the activation code found in your user manual.
4. Complete the activation process to access the main menu.

Step 3: Connect to the Vehicle

1. Locate your vehicle's OBD-II port, typically found under the dashboard.
2. Connect the X100 PADS to the OBD-II port using the provided cable.
3. Ensure the vehicle's ignition is in the "ON" position without starting the engine.

Step 4: Select the Vehicle Make and Model

1. From the main menu, select "Immobilization."
2. Choose your vehicle's make from the list.
3. Select the appropriate model and year.

Step 5: Access Key Programming Functions

1. Within the immobilization menu, select "Program Keys" or a similar option.
2. Follow on-screen prompts to enter necessary information, such as PIN codes if required.
3. Insert the new key fob into the ignition or hold it near the designated area, depending on your vehicle's system.
4. The X100 PADS will communicate with the vehicle to program the new key.

Step 6: Verify the New Key Fob

1. After programming, test the new key fob by locking and unlocking the doors.
2. Start the vehicle to ensure the key is fully functional.
3. If the key does not work as expected, repeat the programming process or consult the user manual.

Advanced Features: EEPROM Programming

For vehicles requiring EEPROM programming, the X100 PADS offers advanced capabilities:

1. Access EEPROM Data:
• Use the EEPROM adapter to connect to the vehicle's EEPROM chip.
• Read and save the existing data.
2. Modify EEPROM Data:
• Use the X100 PADS to edit the EEPROM data as needed for key programming.
• Write the modified data back to the EEPROM chip.
3. Program New Key:
• Proceed with the standard key programming steps using the modified EEPROM data.

Note: EEPROM programming is an advanced procedure. Ensure you have the necessary knowledge or consult a professional.

Tips for Successful Key Fob Programming

• Battery Health: Ensure both the vehicle's battery and the key fob battery are fully charged to prevent interruptions.
• Software Updates: Regularly update the X100 PADS software to access the latest vehicle coverage and features.
• Correct Key Fob: Use a key fob that is compatible with your vehicle's make, model, and year.
• Multiple Keys: If programming multiple keys, program them sequentially during the same session.

Troubleshooting Common Issues

• Key Not Detected: Ensure the key fob is compatible and properly positioned during programming.
• Programming Failure: Check for software updates and verify all connections.
• Vehicle Not Responding: Confirm the OBD-II connection and that the ignition is in the correct position.

Programming a key fob with XTOOL X100 PADS empowers you to take control of your vehicle’s security without overspending. By following this guide, you’ll master a skill that’s equal parts practical and rewarding. Ready to upgrade your DIY game? Grab your tools, double-check your manual, and start programming!
